PRODUCT DETAILS

UPVC Roofing Sheets

Brand: DCM
Warranty: 10 Years


Product Overview

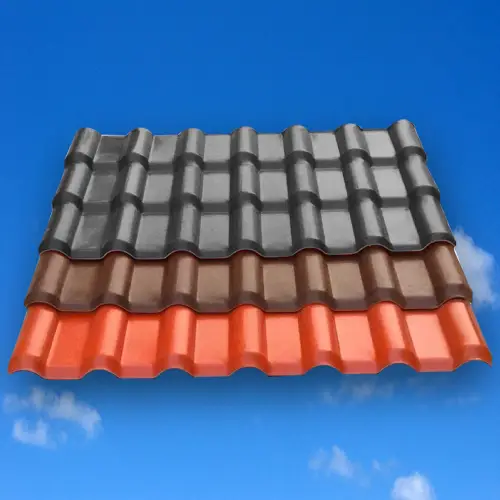

The DCM UPVC ASA Coated Tile Sheets are designed with a Spanish Tile Profile to combine durability, aesthetics, and functionality. These roofing sheets are known for their exceptional longevity and weather resistance, making them suitable for both coastal and inland areas.


Key Features

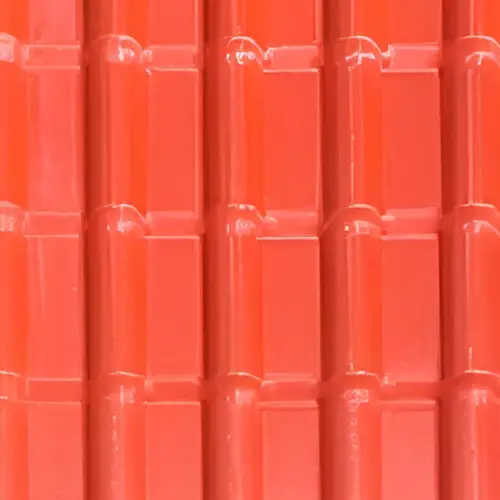

  • Design: Spanish Tile Profile
  • Thickness: 2.5mm
  • Wave Height: 30mm
  • Width: 104.14 cm
  • Length Options:
    • 22.1 ft
    • 20.2 ft
    • 17.9 ft
    • 15.10 ft
    • 14.3 ft
    • 12.2 ft
    • 10.06 ft

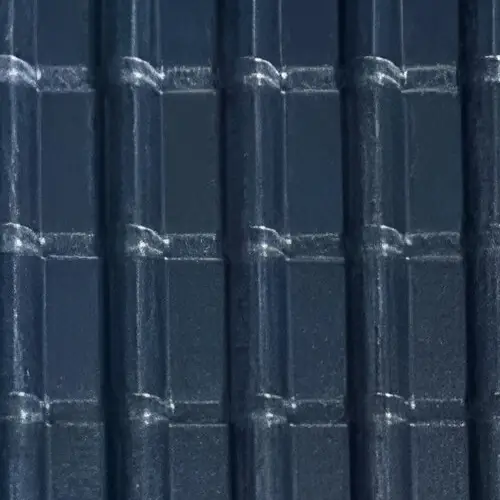

  • Colors Available: Orange Red, Grey, Brown
  • Bottom Color: White

Layer Composition

The DCM UPVC ASA Coated Tile Sheets are made with 4 specialized layers for enhanced performance:

  1. ASA Resin Layer: Protects from UV rays and prevents color fading.
  2. Skeleton Layer: Provides structural strength.
  3. PVC Skeleton Layer: Ensures effective heat insulation.
  4. Abrasion Resistance Layer: Protects the sheets from scratches.

Advantages of Using UPVC Sheets

  • Durability and Longevity: UPVC sheets offer exceptional durability and can withstand harsh weather conditions.
  • Weather Resistance: Resistant to corrosion, rot, and UV rays, making them suitable for diverse climates.
  • Thermal Insulation: Helps in maintaining indoor temperature.
  • Sound Insulation: Reduces external noise levels.
  • Lightweight Nature: Easy to handle and transport.
  • Easy Installation: Streamlined installation process.
  • Low Maintenance: Minimal upkeep required.
  • Cost-Effectiveness: Long-term savings due to durability and low maintenance.

Installation Instructions

  • Use dovetail screws on pre-opened holes.
  • The hole diameter should be greater than 50% of the screw diameter.
  • Avoid over-tightening screws to prevent stress cracking.
  • Screws should not be too loose to avoid water seepage and leakage.
  • Warranty is valid only if washers and UPVC screw caps are used during installation.

Technical Specifications

Specification Details
Brand DCM
Warranty 10 Years
Design Spanish Tile Profile
Thickness 2.5mm
Wave Height 30mm
Width 104.14 cm
Length Options 22.1 ft, 20.2 ft, 17.9 ft, 15.10 ft, 14.3 ft, 12.2 ft, 10.06 ft
Colors Available Orange Red, Grey, Brown
Bottom Color White
Layers ASA Resin, Skeleton, PVC Skeleton, Abrasion Resistance
Key Advantages Weather Resistance, Thermal & Sound Insulation, Lightweight
